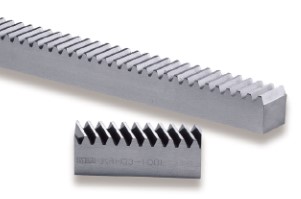

Ground Helical Racks (KRHG - KRHGF - KRHGFD) On KHK Gears

Excellent products with high precision and strength, and low noise and abrasion characteristics.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 25 of 30 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Transverse Module

Effective Number of Teeth

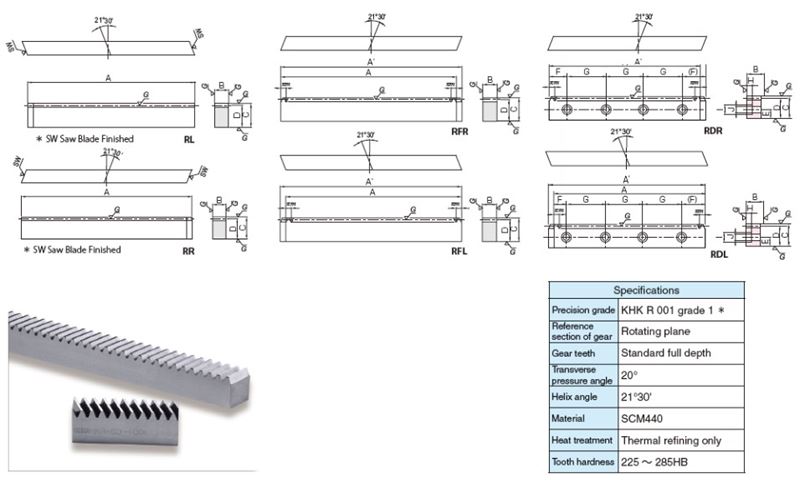

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Item #	Sell Price	CAD	Transverse Module	Effective Number of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Internal ID	Sell Price 1 Value

KRHG1-100L	$123.00	N/A	N/A 1	N/A 28	N/A RL	N/A 3.858 in98 mm	N/A 0.315 in8 mm	N/A 4854	123
KRHG1-100R	$123.00	N/A	N/A 1	N/A 28	N/A RR	N/A 3.858 in98 mm	N/A 0.315 in8 mm	N/A 4855	123
KRHGF1-500L	$440.94	N/A	N/A 1	N/A 159	N/A RFL	N/A 19.666 in499.51 mm	N/A 0.315 in8 mm	N/A 4864	440.94
KRHGF1-500R	$440.94	N/A	N/A 1	N/A 159	N/A RFR	N/A 19.666 in499.51 mm	N/A 0.315 in8 mm	N/A 4865	440.94
KRHGFD1-500LJ	$533.97	N/A	N/A 1	N/A 159	N/A RDL	N/A 19.666 in499.51 mm	N/A 0.315 in8 mm	N/A 4874	533.97
KRHGFD1-500RJ	$533.97	N/A	N/A 1	N/A 159	N/A RDR	N/A 19.666 in499.51 mm	N/A 0.315 in8 mm	N/A 4875	533.97
KRHG1.5-100L	$120.43	N/A	N/A 1.5	N/A 19	N/A RL	N/A 3.976 in101 mm	N/A 0.472 in12 mm	N/A 4856	120.43
KRHG1.5-100R	$120.43	N/A	N/A 1.5	N/A 19	N/A RR	N/A 3.976 in101 mm	N/A 0.472 in12 mm	N/A 4857	120.43
KRHGF1.5-500L	$439.10	N/A	N/A 1.5	N/A 106	N/A RFL	N/A 19.666 in499.51 mm	N/A 0.472 in12 mm	N/A 4866	439.1
KRHGF1.5-500R	$439.10	N/A	N/A 1.5	N/A 106	N/A RFR	N/A 19.666 in499.51 mm	N/A 0.472 in12 mm	N/A 4867	439.1
KRHGFD1.5-500LJ	$535.76	N/A	N/A 1.5	N/A 106	N/A RDL	N/A 19.666 in499.51 mm	N/A 0.472 in12 mm	N/A 4876	535.76
KRHGFD1.5-500RJ	$535.76	N/A	N/A 1.5	N/A 106	N/A RDR	N/A 19.666 in499.51 mm	N/A 0.472 in12 mm	N/A 4877	535.76
KRHG2-100L	$129.31	N/A	N/A 2	N/A 13	N/A RL	N/A 3.858 in98 mm	N/A 0.630 in16 mm	N/A 4858	129.31
KRHG2-100R	$129.31	N/A	N/A 2	N/A 13	N/A RR	N/A 3.858 in98 mm	N/A 0.630 in16 mm	N/A 4859	129.31
KRHGF2-1000L	$812.75	N/A	N/A 2	N/A 160	N/A RFL	N/A 39.579 in1005.31 mm	N/A 0.630 in16 mm	N/A 4868	812.75
KRHGF2-1000R	$812.75	N/A	N/A 2	N/A 160	N/A RFR	N/A 39.579 in1005.31 mm	N/A 0.630 in16 mm	N/A 4869	812.75
KRHGFD2-1000LJ	$981.18	N/A	N/A 2	N/A 160	N/A RDL	N/A 39.579 in1005.31 mm	N/A 0.630 in16 mm	N/A 4878	981.18
KRHGFD2-1000RJ	$981.18	N/A	N/A 2	N/A 160	N/A RDR	N/A 39.579 in1005.31 mm	N/A 0.630 in16 mm	N/A 4879	981.18
KRHG2.5-100L	$139.71	N/A	N/A 2.5	N/A 10	N/A RL	N/A 3.937 in100 mm	N/A 0.787 in20 mm	N/A 4860	139.71
KRHG2.5-100R	$139.71	N/A	N/A 2.5	N/A 10	N/A RR	N/A 3.937 in100 mm	N/A 0.787 in20 mm	N/A 4861	139.71
KRHGF2.5-1000L	$844.69	N/A	N/A 2.5	N/A 128	N/A RFL	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 4870	844.69
KRHGF2.5-1000R	$844.69	N/A	N/A 2.5	N/A 128	N/A RFR	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 4871	844.69
KRHGFD2.5-1000LJ	$1,023.16	N/A	N/A 2.5	N/A 128	N/A RDL	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 4880	1023.16
KRHGFD2.5-1000RJ	$1,023.16	N/A	N/A 2.5	N/A 128	N/A RDR	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 4881	1023.16
KRHG3-100L	$155.03	N/A	N/A 3	N/A 8	N/A RL	N/A 4.016 in102 mm	N/A 0.984 in25 mm	N/A 4862	155.03
