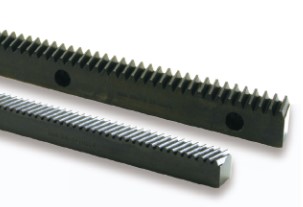

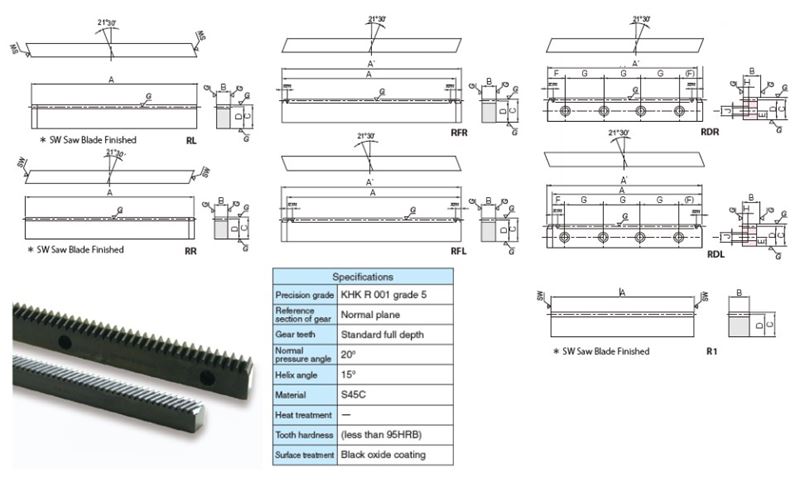

Steel Helical Racks (SRH - SRHF - SRHFD)
Helical Gears
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
Effective Number of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|
| SRH2-1000L | $192.58 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 152 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11396 |
192.58 |
| SRH2-1000R | $192.58 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 152 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11397 |
192.58 |
| SRH2-100L | $27.35 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 12 | Shape N/A RL | Total Length Rack (A) N/A 3.740 in95 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11398 |
27.35 |
| SRH2-100R | $27.35 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 12 | Shape N/A RR | Total Length Rack (A) N/A 3.740 in95 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11399 |
27.35 |
| SRH2-500L | $106.64 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 75 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11400 |
106.64 |
| SRH2-500R | $106.64 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 75 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11401 |
106.64 |
| SRHF2-1000L | $215.03 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 153 | Shape N/A RFL | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11414 |
215.03 |
| SRHF2-1000R | $215.03 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 153 | Shape N/A RFR | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11415 |
215.03 |
| SRHFD2-1000L | $237.17 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 153 | Shape N/A RDL | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11418 |
237.17 |
| SRHFD2-1000R | $237.17 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 153 | Shape N/A RDR | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 0.984 in25 mm |
Internal ID
N/A
11419 |
237.17 |
| SRH3-1000L | $325.73 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 101 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11402 |
325.73 |
| SRH3-1000R | $325.73 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 101 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11403 |
325.73 |
| SRH3-100L | $46.46 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 7 | Shape N/A RL | Total Length Rack (A) N/A 3.740 in95 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11404 |
46.46 |
| SRH3-100R | $46.46 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 7 | Shape N/A RR | Total Length Rack (A) N/A 3.740 in95 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11405 |
46.46 |
| SRH3-500L | $172.45 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 49 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11406 |
172.45 |
| SRH3-500R | $172.45 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 49 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11407 |
172.45 |
| SRHF3-1000L | $352.38 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 102 | Shape N/A RFL | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11416 |
352.38 |
| SRHF3-1000R | $352.38 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 102 | Shape N/A RFR | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11417 |
352.38 |
| SRHFD3-1000L | $377.72 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 102 | Shape N/A RDL | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11420 |
377.72 |
| SRHFD3-1000R | $377.72 |
CAD
N/A
|
Module N/A 3 | Effective Number of Teeth N/A 102 | Shape N/A RDR | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 1.378 in35 mm |
Internal ID
N/A
11421 |
377.72 |
| SRHEF3-1000RHL | $0.00 | CAD N/A | Module N/A 3 | Effective Number of Teeth N/A 100 | Shape N/A RFR | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.142 in29 mm |
Sell Price 1 Value
N/A
{0}USD |
|
| SRHEF4-1000RHL | $0.00 | CAD N/A | Module N/A 4 | Effective Number of Teeth N/A 75 | Shape N/A RFR | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.535 in39 mm |
Sell Price 1 Value
N/A
{0}USD |
|
| SRHEF5-1000RHL | $0.00 | CAD N/A | Module N/A 5 | Effective Number of Teeth N/A 60 | Shape N/A RFR | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.929 in49 mm |
Sell Price 1 Value
N/A
{0}USD |
|
| SRHEF6-1000RHL | $0.00 | CAD N/A | Module N/A 6 | Effective Number of Teeth N/A 50 | Shape N/A RFR | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 2.323 in59 mm |
Sell Price 1 Value
N/A
{0}USD |
