Ground Spiral Miter Gears (SMSG)


Email This Page Download PDF Download PDF Printable Page

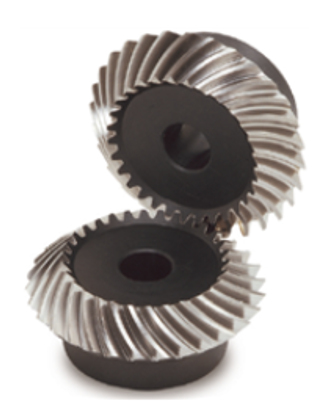

Ground Spiral Miter Gears (SMSG) Miter Gears
  • Ground-Spiral-Miter-Gears--SMSG-/Asset/Ground-Spiral-Miter-Gears--SMSG-.png

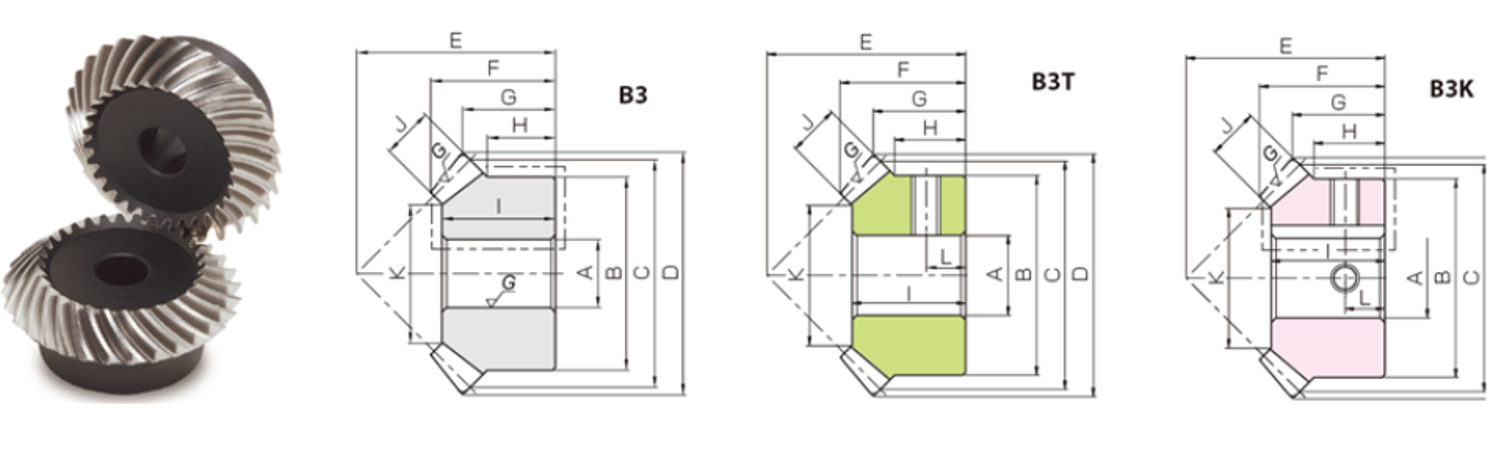

  • Ground-Spiral-Miter-Gears--SMSG-_Dim
  • Ground-Spiral-Miter-Gears--SMSG-/Asset/Ground-Spiral-Miter-Gears--SMSG-.png
  • Ground-Spiral-Miter-Gears--SMSG-_Dim
Widely applicable due to low cost and large selection of pitches and lengths.
1 - 25 of 332 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
Request Information Compare Items Search by Specification
Clear Filter

Module

No. of Teeth

Shape

Bore (A) (in)

Bore (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Item #

Sell Price

CAD

Module

No. of Teeth

Shape

Bore (A)

Pitch Diameter (C)

Outer Diameter (D)

Internal ID

Sell Price 1 Value

SMSG1-20L $82.69 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 20 Shape N/A B3 Bore (A) N/A 0.236 in6 mm Pitch Diameter (C) N/A 0.787 in20 mm Outer Diameter (D) N/A 0.839 in21.3 mm Internal ID N/A
10253 		82.69
SMSG1-20LJ6 $96.21 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 20 Shape N/A B3T Bore (A) N/A 0.236 in6 mm Pitch Diameter (C) N/A 0.787 in20 mm Outer Diameter (D) N/A 0.839 in21.3 mm Internal ID N/A
10254 		96.21
SMSG1-20R $82.69 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 20 Shape N/A B3 Bore (A) N/A 0.236 in6 mm Pitch Diameter (C) N/A 0.787 in20 mm Outer Diameter (D) N/A 0.839 in21.3 mm Internal ID N/A
10255 		82.69
SMSG1-20RJ6 $96.21 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 20 Shape N/A B3T Bore (A) N/A 0.236 in6 mm Pitch Diameter (C) N/A 0.787 in20 mm Outer Diameter (D) N/A 0.839 in21.3 mm Internal ID N/A
10256 		96.21
SMSG1-25L $88.79 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 25 Shape N/A B3 Bore (A) N/A 0.236 in6 mm Pitch Diameter (C) N/A 0.984 in25 mm Outer Diameter (D) N/A 1.032 in26.22 mm Internal ID N/A
10257 		88.79
SMSG1-25LJ6 $101.72 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 25 Shape N/A B3T Bore (A) N/A 0.236 in6 mm Pitch Diameter (C) N/A 0.984 in25 mm Outer Diameter (D) N/A 1.032 in26.22 mm Internal ID N/A
10258 		101.72
SMSG1-25LJ8 $111.23 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 25 Shape N/A B3T Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 0.984 in25 mm Outer Diameter (D) N/A 1.032 in26.22 mm Internal ID N/A
10259 		111.23
SMSG1-25R $88.79 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 25 Shape N/A B3 Bore (A) N/A 0.236 in6 mm Pitch Diameter (C) N/A 0.984 in25 mm Outer Diameter (D) N/A 1.032 in26.22 mm Internal ID N/A
10260 		88.79
SMSG1-25RJ6 $101.72 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 25 Shape N/A B3T Bore (A) N/A 0.236 in6 mm Pitch Diameter (C) N/A 0.984 in25 mm Outer Diameter (D) N/A 1.032 in26.22 mm Internal ID N/A
10261 		101.72
SMSG1-25RJ8 $111.23 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 25 Shape N/A B3T Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 0.984 in25 mm Outer Diameter (D) N/A 1.032 in26.22 mm Internal ID N/A
10262 		111.23
SMSG1-30L $99.63 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 30 Shape N/A B3 Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.231 in31.26 mm Internal ID N/A
10263 		99.63
SMSG1-30LJ10 $127.71 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 30 Shape N/A B3K Bore (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.231 in31.26 mm Internal ID N/A
10264 		127.71
SMSG1-30LJ12 $127.71 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 30 Shape N/A B3K Bore (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.231 in31.26 mm Internal ID N/A
10265 		127.71
SMSG1-30LJ8 $111.55 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 30 Shape N/A B3T Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.231 in31.26 mm Internal ID N/A
10266 		111.55
SMSG1-30R $99.63 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 30 Shape N/A B3 Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.231 in31.26 mm Internal ID N/A
10267 		99.63
SMSG1-30RJ10 $127.71 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 30 Shape N/A B3K Bore (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.231 in31.26 mm Internal ID N/A
10268 		127.71
SMSG1-30RJ12 $127.71 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 30 Shape N/A B3K Bore (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.231 in31.26 mm Internal ID N/A
10269 		127.71
SMSG1-30RJ8 $111.55 CAD N/A CAD Icon (for items table) Module N/A 1 No. of Teeth N/A 30 Shape N/A B3T Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.231 in31.26 mm Internal ID N/A
10270 		111.55
SMSG1.5-20L $82.01 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of Teeth N/A 20 Shape N/A B3 Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.250 in31.74 mm Internal ID N/A
10271 		82.01
SMSG1.5-20LJ10 $111.44 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of Teeth N/A 20 Shape N/A B3K Bore (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.250 in31.74 mm Internal ID N/A
10272 		111.44
SMSG1.5-20LJ8 $94.00 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of Teeth N/A 20 Shape N/A B3T Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.250 in31.74 mm Internal ID N/A
10273 		94
SMSG1.5-20R $82.01 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of Teeth N/A 20 Shape N/A B3 Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.250 in31.74 mm Internal ID N/A
10274 		82.01
SMSG1.5-20RJ10 $111.44 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of Teeth N/A 20 Shape N/A B3K Bore (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.250 in31.74 mm Internal ID N/A
10275 		111.44
SMSG1.5-20RJ8 $94.00 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of Teeth N/A 20 Shape N/A B3T Bore (A) N/A 0.315 in8 mm Pitch Diameter (C) N/A 1.181 in30 mm Outer Diameter (D) N/A 1.250 in31.74 mm Internal ID N/A
10276 		94
SMSG1.5-25L $83.18 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of Teeth N/A 25 Shape N/A B3 Bore (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.476 in37.5 mm Outer Diameter (D) N/A 1.548 in39.31 mm Internal ID N/A
10277 		83.18
