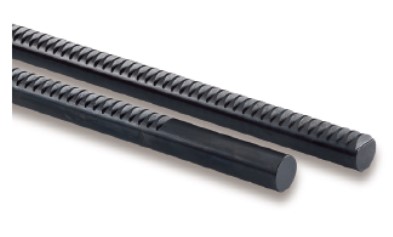

Steel Round Racks (SRO - SROS) On KHK Gears

Convenient in applications where the rack has the reciprocal motion. S Type is easy to install.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 17 of 17 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Module

Effective Number of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Outer Diameter (d) (in)

Outer Diameter (d) (mm)

Item #	Sell Price	CAD	Module	Effective Number of Teeth	Shape	Total Length Rack (A)	Outer Diameter (d)	Internal ID	Sell Price 1 Value

SRO1-500	$77.90	N/A	N/A 1	N/A 159	N/A R2	N/A 19.882 in505 mm	N/A 0.394 in10 mm	N/A 11422	77.9
SROS1-500	$80.32	N/A	N/A 1	N/A 128	N/A R7	N/A 19.882 in505 mm	N/A 0.394 in10 mm	N/A 11437	80.32
SRO1.5-500	$83.56	N/A	N/A 1.5	N/A 105	N/A R2	N/A 19.882 in505 mm	N/A 0.591 in15 mm	N/A 11423	83.56
SROS1.5-500	$87.27	N/A	N/A 1.5	N/A 85	N/A R7	N/A 19.882 in505 mm	N/A 0.591 in15 mm	N/A 11438	87.27
SRO2-1000	$182.25	N/A	N/A 2	N/A 159	N/A R2	N/A 39.764 in1010 mm	N/A 0.787 in20 mm	N/A 11424	182.25
SRO2-500	$101.31	N/A	N/A 2	N/A 79	N/A R2	N/A 19.882 in505 mm	N/A 0.787 in20 mm	N/A 11425	101.31
SROS2-500	$106.12	N/A	N/A 2	N/A 64	N/A R7	N/A 19.882 in505 mm	N/A 0.787 in20 mm	N/A 11439	106.12
SRO2.5-1000	$228.70	N/A	N/A 2.5	N/A 127	N/A R2	N/A 39.764 in1010 mm	N/A 0.984 in25 mm	N/A 11426	228.7
SRO2.5-500	$133.96	N/A	N/A 2.5	N/A 63	N/A R2	N/A 19.882 in505 mm	N/A 0.984 in25 mm	N/A 11427	133.96
SROS2.5-500	$134.14	N/A	N/A 2.5	N/A 51	N/A R7	N/A 19.882 in505 mm	N/A 0.984 in25 mm	N/A 11440	134.14
SRO3-1000	$285.30	N/A	N/A 3	N/A 105	N/A R2	N/A 39.764 in1010 mm	N/A 1.181 in30 mm	N/A 11428	285.3
SRO3-500	$162.63	N/A	N/A 3	N/A 52	N/A R2	N/A 19.882 in505 mm	N/A 1.181 in30 mm	N/A 11429	162.63
SROS3-500	$164.12	N/A	N/A 3	N/A 42	N/A R7	N/A 19.882 in505 mm	N/A 1.181 in30 mm	N/A 11441	164.12
SRO4-1000	$408.28	N/A	N/A 4	N/A 79	N/A R2	N/A 39.764 in1010 mm	N/A 1.575 in40 mm	N/A 11430	408.28
SRO4-500	$227.03	N/A	N/A 4	N/A 39	N/A R2	N/A 19.882 in505 mm	N/A 1.575 in40 mm	N/A 11431	227.03
SRO5-1000	$565.77	N/A	N/A 5	N/A 63	N/A R2	N/A 39.764 in1010 mm	N/A 1.969 in50 mm	N/A 11432	565.77
SRO6-1000	$784.90	N/A	N/A 6	N/A 52	N/A R2	N/A 39.764 in1010 mm	N/A 2.362 in60 mm	N/A 11433	784.9

1 - 17 of 17 | Results Per Page | View | Unit of Measure
