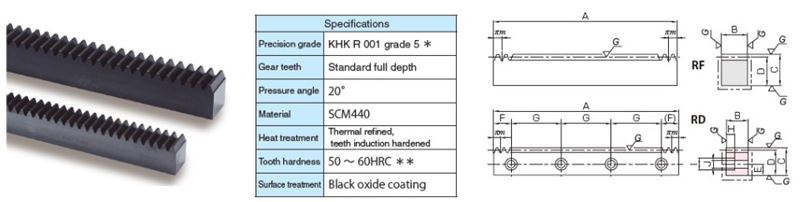

Thermal Refined Racks w/ Machined Ends (KRF

Increased strength with SCM440 material which is thermal refined.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 24 of 24 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Module

Effective No. of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #	Sell Price	CAD	Module	Effective No. of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Height (C)	Height To Pitch Line (D)	Internal ID	Sell Price 1 Value

KRF1.5-1000	$200.72	N/A	N/A 1.5	N/A 212	N/A RF	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 4745	200.72
KRF1.5-500	$112.44	N/A	N/A 1.5	N/A 106	N/A RF	N/A 19.666 in499.51 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 4747	112.44
KRFD1.5-1000J	$232.50	N/A	N/A 1.5	N/A 212	N/A RD	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 4764	232.5
KRFD1.5-500J	$141.27	N/A	N/A 1.5	N/A 106	N/A RD	N/A 19.666 in499.51 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 4765	141.27
KRF2-1000	$268.02	N/A	N/A 2	N/A 160	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 4748	268.02
KRF2-500	$149.98	N/A	N/A 2	N/A 80	N/A RF	N/A 19.789 in502.65 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 4750	149.98
KRFD2-1000J	$303.88	N/A	N/A 2	N/A 160	N/A RD	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 4767	303.88
KRFD2-500J	$181.65	N/A	N/A 2	N/A 80	N/A RD	N/A 19.789 in502.65 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 4768	181.65
KRF2.5-1000	$353.91	N/A	N/A 2.5	N/A 128	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 4751	353.91
KRF2.5-500	$197.89	N/A	N/A 2.5	N/A 64	N/A RF	N/A 19.789 in502.65 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 4753	197.89
KRFD2.5-1000J	$389.41	N/A	N/A 2.5	N/A 128	N/A RD	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 4770	389.41
KRFD2.5-500J	$229.06	N/A	N/A 2.5	N/A 64	N/A RD	N/A 19.789 in502.65 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 4771	229.06
KRF3-1000	$424.54	N/A	N/A 3	N/A 106	N/A RF	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 4754	424.54
KRF3-500	$237.52	N/A	N/A 3	N/A 53	N/A RF	N/A 19.666 in499.51 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 4756	237.52
KRFD3-1000J	$462.89	N/A	N/A 3	N/A 106	N/A RD	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 4773	462.89
KRFD3-500J	$271.02	N/A	N/A 3	N/A 53	N/A RD	N/A 19.666 in499.51 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 4774	271.02
KRF4-1000	$603.26	N/A	N/A 4	N/A 80	N/A RF	N/A 39.579 in1005.31 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 4757	603.26
KRF4-500	$342.04	N/A	N/A 4	N/A 40	N/A RF	N/A 19.789 in502.65 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 4759	342.04
KRFD4-1000J	$651.72	N/A	N/A 4	N/A 80	N/A RD	N/A 39.579 in1005.31 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 4776	651.72
KRFD4-500J	$388.45	N/A	N/A 4	N/A 40	N/A RD	N/A 19.789 in502.65 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 4777	388.45
KRF5-1000	$799.29	N/A	N/A 5	N/A 64	N/A RF	N/A 39.579 in1005.31 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A 4760	799.29
KRF5-500	$459.21	N/A	N/A 5	N/A 32	N/A RF	N/A 19.789 in502.65 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A 4762	459.21
KRFD5-1000J	$850.94	N/A	N/A 5	N/A 64	N/A RD	N/A 39.579 in1005.31 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A 4779	850.94
KRFD5-500J	$498.61	N/A	N/A 5	N/A 32	N/A RD	N/A 19.789 in502.65 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A 4780	498.61

1 - 24 of 24 | Results Per Page | View | Unit of Measure
