Hubless Spur Gears (SSA-F)


Email This Page Download PDF Download PDF Printable Page
Hubless Spur Gears (SSA-F) Spur Gears
  • SSA-F - Category/Asset/SSA-F---Category.jpg
  • Hubless-Spur-Gears SSA-F
  • SSA-F - Category/Asset/SSA-F---Category.jpg
  • Hubless-Spur-Gears SSA-F

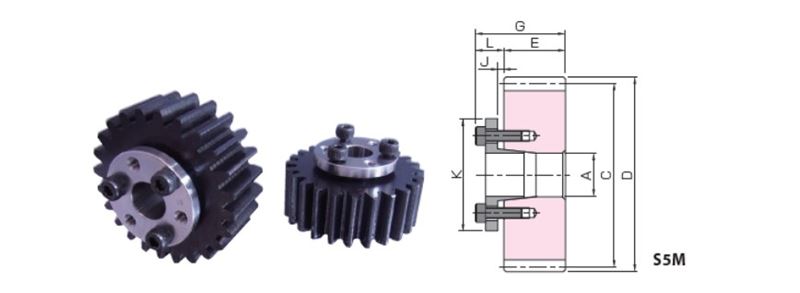

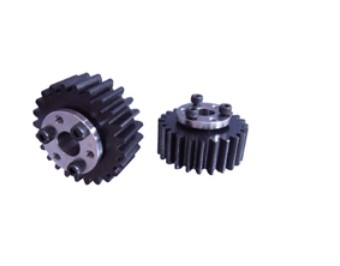

The SSA-F Hubless Spur Gears are made from carbon steel and are NOT hardened. These Hubless Spur Gears are assembled with a locking hub for the most secure fastening to your shaft.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 330 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
Request Information Compare Items Search by Specification
Clear Filter

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #

Sell Price

CAD

Module

No. of Teeth

Shape

Bore Diameter (A)

Pitch Diameter (C)

Outer Diameter (D)

Total Length (G)

Internal ID

Sell Price 1 Value

SSA2-100F18 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
20979 		Sell Price 1 Value N/A
{0}USD
SSA2-100F19 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 0.748 in19 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
20980 		Sell Price 1 Value N/A
{0}USD
SSA2-100F20 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 0.787 in20 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.339 in34 mm Internal ID N/A
20981 		Sell Price 1 Value N/A
{0}USD
SSA2-100F22 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 0.866 in22 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.339 in34 mm Internal ID N/A
20982 		Sell Price 1 Value N/A
{0}USD
SSA2-100F25 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 0.984 in25 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.339 in34 mm Internal ID N/A
20983 		Sell Price 1 Value N/A
{0}USD
SSA2-100F28 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 1.102 in28 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.339 in34 mm Internal ID N/A
20984 		Sell Price 1 Value N/A
{0}USD
SSA2-100F30 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 1.181 in30 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.339 in34 mm Internal ID N/A
20985 		Sell Price 1 Value N/A
{0}USD
SSA2-100F32 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 1.260 in32 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.339 in34 mm Internal ID N/A
20986 		Sell Price 1 Value N/A
{0}USD
SSA2-100F35 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 100 Shape N/A S5M Bore Diameter (A) N/A 1.378 in35 mm Pitch Diameter (C) N/A 7.874 in200 mm Outer Diameter (D) N/A 8.031 in204 mm Total Length (G) N/A 1.339 in34 mm Internal ID N/A
20987 		Sell Price 1 Value N/A
{0}USD
SSA2-24F12 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 24 Shape N/A S5M Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.890 in48 mm Outer Diameter (D) N/A 2.047 in52 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
21038 		Sell Price 1 Value N/A
{0}USD
SSA2-25F12 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 25 Shape N/A S5M Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.969 in50 mm Outer Diameter (D) N/A 2.126 in54 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
21056 		Sell Price 1 Value N/A
{0}USD
SSA2-25F14 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 25 Shape N/A S5M Bore Diameter (A) N/A 0.551 in14 mm Pitch Diameter (C) N/A 1.969 in50 mm Outer Diameter (D) N/A 2.126 in54 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21057 		Sell Price 1 Value N/A
{0}USD
SSA2-25F15 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 25 Shape N/A S5M Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.969 in50 mm Outer Diameter (D) N/A 2.126 in54 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21058 		Sell Price 1 Value N/A
{0}USD
SSA2-28F15 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 28 Shape N/A S5M Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.205 in56 mm Outer Diameter (D) N/A 2.362 in60 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21078 		Sell Price 1 Value N/A
{0}USD
SSA2-28F16 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 28 Shape N/A S5M Bore Diameter (A) N/A 0.630 in16 mm Pitch Diameter (C) N/A 2.205 in56 mm Outer Diameter (D) N/A 2.362 in60 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21079 		Sell Price 1 Value N/A
{0}USD
SSA2-28F17 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 28 Shape N/A S5M Bore Diameter (A) N/A 0.669 in17 mm Pitch Diameter (C) N/A 2.205 in56 mm Outer Diameter (D) N/A 2.362 in60 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21080 		Sell Price 1 Value N/A
{0}USD
SSA2-28F18 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 28 Shape N/A S5M Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 2.205 in56 mm Outer Diameter (D) N/A 2.362 in60 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21081 		Sell Price 1 Value N/A
{0}USD
SSA2-28F19 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 28 Shape N/A S5M Bore Diameter (A) N/A 0.748 in19 mm Pitch Diameter (C) N/A 2.205 in56 mm Outer Diameter (D) N/A 2.362 in60 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21082 		Sell Price 1 Value N/A
{0}USD
SSA2-30F15 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 30 Shape N/A S5M Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.362 in60 mm Outer Diameter (D) N/A 2.520 in64 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21100 		Sell Price 1 Value N/A
{0}USD
SSA2-30F16 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 30 Shape N/A S5M Bore Diameter (A) N/A 0.630 in16 mm Pitch Diameter (C) N/A 2.362 in60 mm Outer Diameter (D) N/A 2.520 in64 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21101 		Sell Price 1 Value N/A
{0}USD
SSA2-30F17 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 30 Shape N/A S5M Bore Diameter (A) N/A 0.669 in17 mm Pitch Diameter (C) N/A 2.362 in60 mm Outer Diameter (D) N/A 2.520 in64 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21102 		Sell Price 1 Value N/A
{0}USD
SSA2-30F18 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 30 Shape N/A S5M Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 2.362 in60 mm Outer Diameter (D) N/A 2.520 in64 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21103 		Sell Price 1 Value N/A
{0}USD
SSA2-30F19 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 30 Shape N/A S5M Bore Diameter (A) N/A 0.748 in19 mm Pitch Diameter (C) N/A 2.362 in60 mm Outer Diameter (D) N/A 2.520 in64 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21104 		Sell Price 1 Value N/A
{0}USD
SSA2-32F15 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 32 Shape N/A S5M Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.520 in64 mm Outer Diameter (D) N/A 2.677 in68 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21122 		Sell Price 1 Value N/A
{0}USD
SSA2-32F16 $0.00 CAD N/A Module N/A 2 No. of Teeth N/A 32 Shape N/A S5M Bore Diameter (A) N/A 0.630 in16 mm Pitch Diameter (C) N/A 2.520 in64 mm Outer Diameter (D) N/A 2.677 in68 mm Total Length (G) N/A 1.260 in32 mm Internal ID N/A
21123 		Sell Price 1 Value N/A
{0}USD
1 - 25 of 330 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
*
