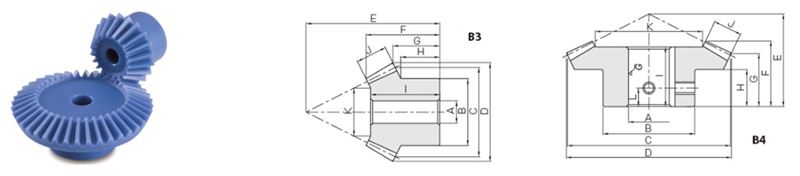

Plastic Bevel Gears (PB)
Bevel Gears
Stainless steel products, usable without remachining.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Gear Ratio |
Module |
No. of Teeth |
Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (F) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PB1-2040 | $17.60 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.882 in22.41 mm | Total Length (F) N/A 0.543 in13.78 mm |
Internal ID
N/A
7471 |
17.6 |
| PB1-4020 | $29.70 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 1 | No. of Teeth N/A 40 | Shape N/A B4 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.598 in40.59 mm | Total Length (F) N/A 0.593 in15.07 mm |
Internal ID
N/A
7472 |
29.7 |
| PB1.25-2040 | $21.16 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 1.25 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.103 in28.01 mm | Total Length (F) N/A 0.735 in18.66 mm |
Internal ID
N/A
7473 |
21.16 |
| PB1.25-4020 | $35.65 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 1.25 | No. of Teeth N/A 40 | Shape N/A B4 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 1.997 in50.73 mm | Total Length (F) N/A 0.730 in18.54 mm |
Internal ID
N/A
7474 |
35.65 |
| PB1.5-1545 | $20.30 |
CAD
N/A
|
Gear Ratio N/A 3 | Module N/A 1.5 | No. of Teeth N/A 15 | Shape N/A B3 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 0.886 in22.5 mm | Outer Diameter (D) N/A 1.045 in26.54 mm | Total Length (F) N/A 0.913 in23.19 mm |
Internal ID
N/A
7475 |
20.3 |
| PB1.5-2030 | $21.05 |
CAD
N/A
|
Gear Ratio N/A 1.5 | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.304 in33.13 mm | Total Length (F) N/A 0.733 in18.63 mm |
Internal ID
N/A
7476 |
21.05 |
| PB1.5-2040 | $22.75 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.323 in33.61 mm | Total Length (F) N/A 1.006 in25.54 mm |
Internal ID
N/A
7477 |
22.75 |
| PB1.5-3020 | $29.49 |
CAD
N/A
|
Gear Ratio N/A 1.5 | Module N/A 1.5 | No. of Teeth N/A 30 | Shape N/A B4 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.820 in46.24 mm | Total Length (F) N/A 0.730 in18.53 mm |
Internal ID
N/A
7478 |
29.49 |
| PB1.5-4020 | $41.86 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 1.5 | No. of Teeth N/A 40 | Shape N/A B4 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.397 in60.88 mm | Total Length (F) N/A 0.985 in25.01 mm |
Internal ID
N/A
7479 |
41.86 |
| PB1.5-4515 | $42.90 |
CAD
N/A
|
Gear Ratio N/A 3 | Module N/A 1.5 | No. of Teeth N/A 45 | Shape N/A B4 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 2.657 in67.5 mm | Outer Diameter (D) N/A 2.680 in68.06 mm | Total Length (F) N/A 0.805 in20.44 mm |
Internal ID
N/A
7480 |
42.9 |
| PB2-1545 | $27.16 |
CAD
N/A
|
Gear Ratio N/A 3 | Module N/A 2 | No. of Teeth N/A 15 | Shape N/A B3 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.392 in35.35 mm | Total Length (F) N/A 1.173 in29.8 mm |
Internal ID
N/A
7481 |
27.16 |
| PB2-2030 | $27.53 |
CAD
N/A
|
Gear Ratio N/A 1.5 | Module N/A 2 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.739 in44.18 mm | Total Length (F) N/A 0.987 in25.06 mm |
Internal ID
N/A
7482 |
27.53 |
| PB2-2040 | $30.38 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 2 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.764 in44.81 mm | Total Length (F) N/A 1.345 in34.16 mm |
Internal ID
N/A
7483 |
30.38 |
| PB2-3020 | $42.25 |
CAD
N/A
|
Gear Ratio N/A 1.5 | Module N/A 2 | No. of Teeth N/A 30 | Shape N/A B4 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.427 in61.65 mm | Total Length (F) N/A 1.058 in26.87 mm |
Internal ID
N/A
7484 |
42.25 |
| PB2-4020 | $62.60 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 2 | No. of Teeth N/A 40 | Shape N/A B4 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.196 in81.17 mm | Total Length (F) N/A 1.274 in32.37 mm |
Internal ID
N/A
7485 |
62.6 |
| PB2-4515 | $72.47 |
CAD
N/A
|
Gear Ratio N/A 3 | Module N/A 2 | No. of Teeth N/A 45 | Shape N/A B4 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.573 in90.75 mm | Total Length (F) N/A 1.197 in30.4 mm |
Internal ID
N/A
7486 |
72.47 |
| PB2.5-1545 | $31.61 |
CAD
N/A
|
Gear Ratio N/A 3 | Module N/A 2.5 | No. of Teeth N/A 15 | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.739 in44.18 mm | Total Length (F) N/A 1.512 in38.41 mm |
Internal ID
N/A
7487 |
31.61 |
| PB2.5-2030 | $38.35 |
CAD
N/A
|
Gear Ratio N/A 1.5 | Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.174 in55.22 mm | Total Length (F) N/A 1.223 in31.06 mm |
Internal ID
N/A
7488 |
38.35 |
| PB2.5-2040 | $44.88 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.205 in56.01 mm | Total Length (F) N/A 1.724 in43.78 mm |
Internal ID
N/A
7489 |
44.88 |
| PB2.5-3020 | $57.65 |
CAD
N/A
|
Gear Ratio N/A 1.5 | Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A B4 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.034 in77.07 mm | Total Length (F) N/A 1.347 in34.22 mm |
Internal ID
N/A
7490 |
57.65 |
| PB2.5-4020 | $97.38 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 2.5 | No. of Teeth N/A 40 | Shape N/A B4 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 3.995 in101.47 mm | Total Length (F) N/A 1.564 in39.73 mm |
Internal ID
N/A
7491 |
97.38 |
| PB2.5-4515 | $110.01 |
CAD
N/A
|
Gear Ratio N/A 3 | Module N/A 2.5 | No. of Teeth N/A 45 | Shape N/A B4 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 4.429 in112.5 mm | Outer Diameter (D) N/A 4.466 in113.43 mm | Total Length (F) N/A 1.510 in38.35 mm |
Internal ID
N/A
7492 |
110.01 |
| PB3-1545 | $42.85 |
CAD
N/A
|
Gear Ratio N/A 3 | Module N/A 3 | No. of Teeth N/A 15 | Shape N/A B3 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 2.087 in53.02 mm | Total Length (F) N/A 1.778 in45.17 mm |
Internal ID
N/A
7493 |
42.85 |
| PB3-2030 | $52.62 |
CAD
N/A
|
Gear Ratio N/A 1.5 | Module N/A 3 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.609 in66.27 mm | Total Length (F) N/A 1.594 in40.48 mm |
Internal ID
N/A
7494 |
52.62 |
| PB3-2040 | $63.69 |
CAD
N/A
|
Gear Ratio N/A 2 | Module N/A 3 | No. of Teeth N/A 20 | Shape N/A B3 | Bore Diameter (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.646 in67.22 mm | Total Length (F) N/A 2.000 in50.81 mm |
Internal ID
N/A
7495 |
63.69 |
