CP Hardened Racks (SRCPF-H/SRCPFD-H)


Email This Page Download PDF Download PDF Printable Page

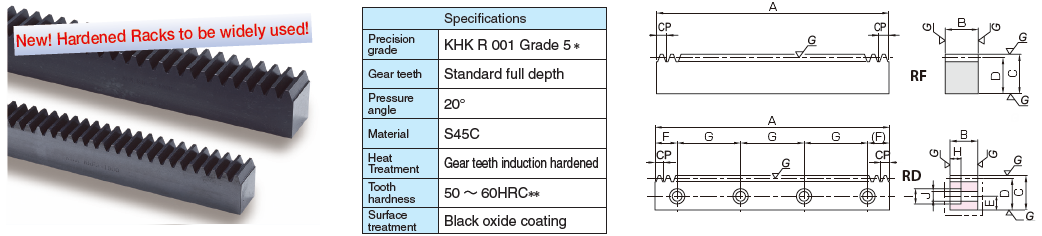

CP Hardened Racks (SRCPF-H/SRCPFD-H) CP Rack & Pinions
  • SRCPF-H-SRCPFD-H---Category/Asset/SRCPF-H-SRCPFD-H---Category.png
  • CP-Hardened-Racks--SRCPF-H-SRCPFD-H-
  • SRCPF-H-SRCPFD-H---Category/Asset/SRCPF-H-SRCPFD-H---Category.png
  • CP-Hardened-Racks--SRCPF-H-SRCPFD-H-
Ground Spur Gears with Pinions, can be directly assembled with the shaft bearing, by modifying the pinion.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 32 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Module

Effective No. of Teeth

Shape

  • RD
  • RF

Length (in)

Length (mm)

Mounting Hole

  • No
  • Yes

Item #

Sell Price

CAD

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

SRCPF5-1000H $218.95 CAD N/A CAD Icon (for items table) Module N/A 1.5915 Effective No. of Teeth N/A 200 Shape N/A RF Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11158 		218.95
SRCPFD5-1000HJ $247.83 CAD N/A CAD Icon (for items table) Module N/A 1.5915 Effective No. of Teeth N/A 200 Shape N/A RD Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11190 		247.83
SRCPF5-1000HL $0.00 CAD N/A Module N/A 1.5915 Effective No. of Teeth N/A 200 Shape N/A RF Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11159 		0
SRCPF5-1500HL $0.00 CAD N/A Module N/A 1.5915 Effective No. of Teeth N/A 300 Shape N/A RF Total Length Rack (A) N/A 59.055 in1500 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11161 		0
SRCPF5-2000HL $0.00 CAD N/A Module N/A 1.5915 Effective No. of Teeth N/A 410 Shape N/A RF Total Length Rack (A) N/A 80.709 in2050 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11163 		0
SRCPFD5-1000HLJ $285.10 CAD N/A Module N/A 1.5915 Effective No. of Teeth N/A 200 Shape N/A RD Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11191 		285.1
SRCPFD5-1500HLJ $372.10 CAD N/A Module N/A 1.5915 Effective No. of Teeth N/A 300 Shape N/A RD Total Length Rack (A) N/A 59.055 in1500 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11193 		372.1
SRCPFD5-2000HLJ $463.50 CAD N/A Module N/A 1.5915 Effective No. of Teeth N/A 410 Shape N/A RD Total Length Rack (A) N/A 80.709 in2050 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11195 		463.5
SRCPF10-1000H $358.33 CAD N/A CAD Icon (for items table) Module N/A 3.1831 Effective No. of Teeth N/A 100 Shape N/A RF Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11132 		358.33
SRCPFD10-1000HJ $398.65 CAD N/A CAD Icon (for items table) Module N/A 3.1831 Effective No. of Teeth N/A 100 Shape N/A RD Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11166 		398.65
SRCPF10-1000HL $0.00 CAD N/A Module N/A 3.1831 Effective No. of Teeth N/A 100 Shape N/A RF Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11133 		0
SRCPF10-1500HL $0.00 CAD N/A Module N/A 3.1831 Effective No. of Teeth N/A 150 Shape N/A RF Total Length Rack (A) N/A 59.055 in1500 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11135 		0
SRCPF10-2000HL $0.00 CAD N/A Module N/A 3.1831 Effective No. of Teeth N/A 205 Shape N/A RF Total Length Rack (A) N/A 80.709 in2050 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11137 		0
SRCPFD10-1000HLJ $327.90 CAD N/A Module N/A 3.1831 Effective No. of Teeth N/A 100 Shape N/A RD Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11167 		327.9
SRCPFD10-1500HLJ $451.10 CAD N/A Module N/A 3.1831 Effective No. of Teeth N/A 150 Shape N/A RD Total Length Rack (A) N/A 59.055 in1500 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11169 		451.1
SRCPFD10-2000HLJ $571.40 CAD N/A Module N/A 3.1831 Effective No. of Teeth N/A 205 Shape N/A RD Total Length Rack (A) N/A 80.709 in2050 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11171 		571.4
SRCPF15-1000H $690.20 CAD N/A CAD Icon (for items table) Module N/A 4.7746 Effective No. of Teeth N/A 67 Shape N/A RF Total Length Rack (A) N/A 39.567 in1005 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11140 		690.2
SRCPFD15-1000HJ $742.23 CAD N/A CAD Icon (for items table) Module N/A 4.7746 Effective No. of Teeth N/A 67 Shape N/A RD Total Length Rack (A) N/A 39.567 in1005 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11174 		742.23
SRCPF15-1000HL $0.00 CAD N/A Module N/A 4.7746 Effective No. of Teeth N/A 67 Shape N/A RF Total Length Rack (A) N/A 39.567 in1005 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11141 		0
SRCPF15-1500HL $0.00 CAD N/A Module N/A 4.7746 Effective No. of Teeth N/A 100 Shape N/A RF Total Length Rack (A) N/A 59.055 in1500 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11143 		0
SRCPF15-2000HL $0.00 CAD N/A Module N/A 4.7746 Effective No. of Teeth N/A 136 Shape N/A RF Total Length Rack (A) N/A 80.315 in2040 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11145 		0
SRCPFD15-1000HLJ $594.30 CAD N/A Module N/A 4.7746 Effective No. of Teeth N/A 67 Shape N/A RD Total Length Rack (A) N/A 39.567 in1005 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11175 		594.3
SRCPFD15-1500HLJ $821.20 CAD N/A Module N/A 4.7746 Effective No. of Teeth N/A 100 Shape N/A RD Total Length Rack (A) N/A 59.055 in1500 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11177 		821.2
SRCPFD15-2000HLJ $1,050.80 CAD N/A Module N/A 4.7746 Effective No. of Teeth N/A 136 Shape N/A RD Total Length Rack (A) N/A 80.315 in2040 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11179 		1050.8
SRCPF20-1000H $925.53 CAD N/A CAD Icon (for items table) Module N/A 6.3662 Effective No. of Teeth N/A 50 Shape N/A RF Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 2.362 in60 mm Height (C) N/A 2.362 in60 mm Height To Pitch Line (D) N/A 2.111 in53.63 mm Internal ID N/A
11150 		925.53
1 - 25 of 32 | Results Per Page | View | Unit of Measure
1 2
*
