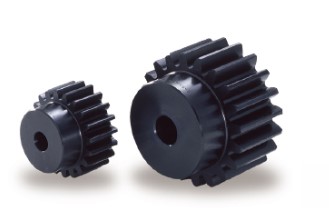

CP Spur Gears (SSCP) On KHK Gears

Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 25 of 292 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

Shape

Circular Pitch

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

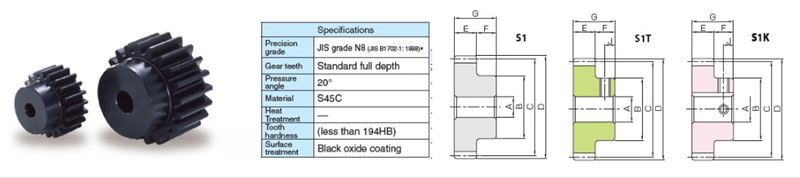

Item #	Sell Price	CAD	Bore Type	Module	No. of Teeth	Shape	Circular Pitch	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	Internal ID	Sell Price 1 Value

SSCP2.5-20	$11.92	N/A	N/A Plain	N/A 0.7958	N/A 20	N/A S1	N/A 2.5	N/A 0.236 in6 mm	N/A 0.627 in15.92 mm	N/A 0.689 in17.51 mm	N/A 0.787 in20 mm	N/A 23725	11.92
SSCP2.5-20H	$0.00	N/A	N/A Plain	N/A 0.7958	N/A 20	N/A S1	N/A 2.5	N/A 0.236 in6 mm	N/A 0.627 in15.92 mm	N/A 0.689 in17.51 mm	N/A 0.787 in20 mm	N/A 23726	0
SSCP2.5-20J6	$33.28	N/A	N/A Finished	N/A 0.7958	N/A 20	N/A S1T	N/A 2.5	N/A 0.236 in6 mm	N/A 0.627 in15.92 mm	N/A 0.689 in17.51 mm	N/A 0.787 in20 mm	N/A 23727	33.28
SSCP2.5-25	$13.89	N/A	N/A Plain	N/A 0.7958	N/A 25	N/A S1	N/A 2.5	N/A 0.315 in8 mm	N/A 0.783 in19.89 mm	N/A 0.846 in21.49 mm	N/A 0.787 in20 mm	N/A 23728	13.89
SSCP2.5-25H	$0.00	N/A	N/A Plain	N/A 0.7958	N/A 25	N/A S1	N/A 2.5	N/A 0.315 in8 mm	N/A 0.783 in19.89 mm	N/A 0.846 in21.49 mm	N/A 0.787 in20 mm	N/A 23729	0
SSCP2.5-25J8	$35.06	N/A	N/A Finished	N/A 0.7958	N/A 25	N/A S1T	N/A 2.5	N/A 0.315 in8 mm	N/A 0.783 in19.89 mm	N/A 0.846 in21.49 mm	N/A 0.787 in20 mm	N/A 23730	35.06
SSCP2.5-30	$15.51	N/A	N/A Plain	N/A 0.7958	N/A 30	N/A S1	N/A 2.5	N/A 0.315 in8 mm	N/A 0.940 in23.87 mm	N/A 1.002 in25.46 mm	N/A 0.787 in20 mm	N/A 23731	15.51
SSCP2.5-30H	$0.00	N/A	N/A Plain	N/A 0.7958	N/A 30	N/A S1	N/A 2.5	N/A 0.315 in8 mm	N/A 0.940 in23.87 mm	N/A 1.002 in25.46 mm	N/A 0.787 in20 mm	N/A 23732	0
SSCP2.5-30J8	$36.43	N/A	N/A Finished	N/A 0.7958	N/A 30	N/A S1T	N/A 2.5	N/A 0.315 in8 mm	N/A 0.940 in23.87 mm	N/A 1.002 in25.46 mm	N/A 0.787 in20 mm	N/A 23733	36.43
SSCP2.5-40	$19.40	N/A	N/A Plain	N/A 0.7958	N/A 40	N/A S1	N/A 2.5	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23734	19.4
SSCP2.5-40H	$0.00	N/A	N/A Plain	N/A 0.7958	N/A 40	N/A S1	N/A 2.5	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23735	0
SSCP2.5-40J10	$47.48	N/A	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23739	47.48
SSCP2.5-40J12	$57.85	N/A	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.472 in12 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23740	57.85
SSCP2.5-40J14	$57.85	N/A	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.551 in14 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23741	57.85
SSCP2.5-40J15	$57.85	N/A	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.591 in15 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23742	57.85
SSCP2.5-40HJ12	$0.00	N/A	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.472 in12 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23736	0
SSCP2.5-40HJ14	$0.00	N/A	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.551 in14 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23737	0
SSCP2.5-40HJ15	$0.00	N/A	N/A Finished	N/A 0.7958	N/A 40	N/A S1K	N/A 2.5	N/A 0.591 in15 mm	N/A 1.253 in31.83 mm	N/A 1.316 in33.42 mm	N/A 0.787 in20 mm	N/A 23738	0
SSCP5-20H	$0.00	N/A	N/A Plain	N/A 1.5915	N/A 20	N/A S1	N/A 5	N/A 0.315 in8 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A 23817	0
SSCP5-25H	$0.00	N/A	N/A Plain	N/A 1.5915	N/A 25	N/A S1	N/A 5	N/A 0.394 in10 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A 23824	0
SSCP5-30H	$0.00	N/A	N/A Plain	N/A 1.5915	N/A 30	N/A S1	N/A 5	N/A 0.394 in10 mm	N/A 1.880 in47.75 mm	N/A 2.005 in50.93 mm	N/A 1.181 in30 mm	N/A 23837	0
SSCP5-40H	$0.00	N/A	N/A Plain	N/A 1.5915	N/A 40	N/A S1	N/A 5	N/A 0.472 in12 mm	N/A 2.506 in63.66 mm	N/A 2.632 in66.85 mm	N/A 1.181 in30 mm	N/A 23858	0
SSCP5-20HJ10	$0.00	N/A	N/A Finished	N/A 1.5915	N/A 20	N/A S1K	N/A 5	N/A 0.394 in10 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A 23818	0
SSCP5-20HJ12	$0.00	N/A	N/A Finished	N/A 1.5915	N/A 20	N/A S1K	N/A 5	N/A 0.472 in12 mm	N/A 1.253 in31.83 mm	N/A 1.378 in35.01 mm	N/A 1.181 in30 mm	N/A 23819	0
SSCP5-25HJ12	$0.00	N/A	N/A Finished	N/A 1.5915	N/A 25	N/A S1K	N/A 5	N/A 0.472 in12 mm	N/A 1.567 in39.79 mm	N/A 1.692 in42.97 mm	N/A 1.181 in30 mm	N/A 23825	0
