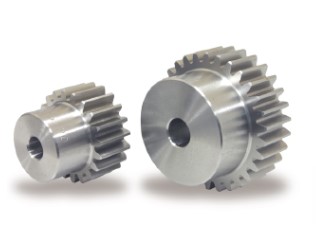

CP Stainless Steel Gears (SUSCP)
CP Rack & Pinions
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Bore Type |
Module |
No. of Teeth |

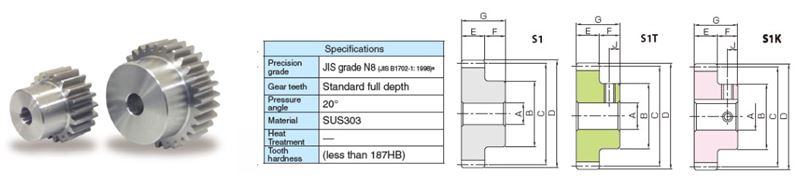

Shape |
Circular Pitch |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUSCP5-20 | $34.98 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 1.5915 | No. of Teeth N/A 20 | Shape N/A S1 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.378 in35.01 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30202 |
34.98 |
| SUSCP5-20J10 | $73.04 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 20 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.378 in35.01 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30203 |
73.04 |
| SUSCP5-20J12 | $73.04 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 20 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.378 in35.01 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30204 |
73.04 |
| SUSCP5-20J8 | $54.55 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 20 | Shape N/A S1T | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.378 in35.01 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30205 |
54.55 |
| SUSCP5-25 | $42.18 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 1.5915 | No. of Teeth N/A 25 | Shape N/A S1 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.566 in39.78 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30206 |
42.18 |
| SUSCP5-25J10 | $68.23 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 25 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.566 in39.78 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30207 |
68.23 |
| SUSCP5-25J12 | $79.20 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 25 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.566 in39.78 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30208 |
79.2 |
| SUSCP5-25J14 | $79.20 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 25 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.566 in39.78 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30209 |
79.2 |
| SUSCP5-25J15 | $79.20 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 25 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.566 in39.78 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30210 |
79.2 |
| SUSCP5-25J16 | $79.20 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 25 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 1.566 in39.78 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30211 |
79.2 |
| SUSCP5-25J17 | $79.20 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 25 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.669 in17 mm | Pitch Diameter (C) N/A 1.566 in39.78 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30212 |
79.2 |
| SUSCP5-30 | $54.97 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30213 |
54.97 |
| SUSCP5-30J10 | $79.76 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30214 |
79.76 |
| SUSCP5-30J12 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30215 |
90.66 |
| SUSCP5-30J14 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30216 |
90.66 |
| SUSCP5-30J15 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30217 |
90.66 |
| SUSCP5-30J16 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30218 |
90.66 |
| SUSCP5-30J17 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.669 in17 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30219 |
90.66 |
| SUSCP5-30J18 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30220 |
90.66 |
| SUSCP5-30J19 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.748 in19 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30221 |
90.66 |
| SUSCP5-30J20 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
30222 |
90.66 |
| SUSCP5-30J22 | $90.66 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 1.5915 | No. of Teeth N/A 30 | Shape N/A S1K | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.866 in22 mm | Pitch Diameter (C) N/A 1.880 in47.74 mm | Outer Diameter (D) N/A 2.005 in50.93 mm | Total Length (G) N/A 1.378 in35 mm |
Internal ID
N/A
30223 |
90.66 |
| SUSCP10-20 | $117.66 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 3.1831 | No. of Teeth N/A 20 | Shape N/A S1 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.757 in70.03 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
30173 |
117.66 |
| SUSCP10-20J15 | $145.29 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 3.1831 | No. of Teeth N/A 20 | Shape N/A S1K | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.757 in70.03 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
30174 |
145.29 |
| SUSCP10-20J16 | $159.20 |
CAD
N/A
|
Bore Type N/A Finished | Module N/A 3.1831 | No. of Teeth N/A 20 | Shape N/A S1K | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.757 in70.03 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
30175 |
159.2 |
