Finished Bore Stainless Miter Gears (SUMA)
Miter Gears
Ready to use without performing secondary operations. Strong and abrasion resistant.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |

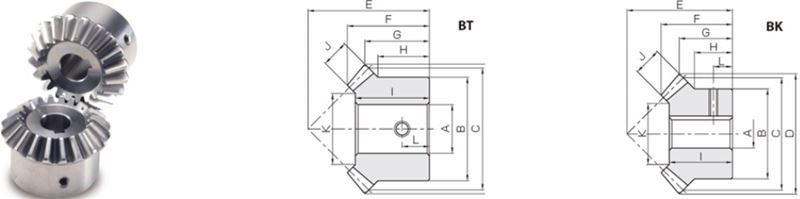

Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| SUMA1-20 | $27.53 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm |
Internal ID
N/A
28735 |
27.53 |
| SUMA1-25 | $32.95 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 25 | Shape N/A BT | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.040 in26.41 mm |
Internal ID
N/A
28736 |
32.95 |
| SUMA1.5-20 | $39.20 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm |
Internal ID
N/A
28737 |
39.2 |
| SUMA1.5-25 | $49.26 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A BT | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.560 in39.62 mm |
Internal ID
N/A
28738 |
49.26 |
| SUMA2-20 | $55.93 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm |
Internal ID
N/A
28739 |
55.93 |
| SUMA2-25 | $71.56 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm |
Internal ID
N/A
28740 |
71.56 |
| SUMA2.5-20 | $80.09 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm |
Internal ID
N/A
28741 |
80.09 |
| SUMA2.5-25 | $94.74 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.04 mm |
Internal ID
N/A
28742 |
94.74 |
| SUMA3-20 | $108.56 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm |
Internal ID
N/A
28743 |
108.56 |
| SUMA3-25 | $137.30 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm |
Internal ID
N/A
28744 |
137.3 |
| SUMA4-20 | $181.55 |
CAD
N/A
|
Module N/A 4 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.372 in85.65 mm |
Internal ID
N/A
28745 |
181.55 |
| SUMA4-25 | $242.60 |
CAD
N/A
|
Module N/A 4 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.160 in105.66 mm |
Internal ID
N/A
28746 |
242.6 |
