Stainless Steel Miter Gears (SUM)
Miter Gears
Reasonably priced ground gear, yet remachinable except for the gear teeth.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |

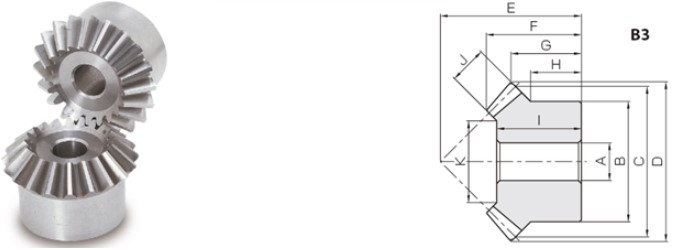

Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| SUM1-20 | $25.42 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm |
Internal ID
N/A
28718 |
25.42 |
| SUM1-25 | $30.63 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.040 in26.41 mm |
Internal ID
N/A
28719 |
30.63 |
| SUM1-30 | $0.00 | CAD N/A | Module N/A 1 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.237 in31.41 mm |
Internal ID
N/A
28720 |
0 |
| SUM1.5-20 | $35.24 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm |
Internal ID
N/A
28721 |
35.24 |
| SUM1.5-25 | $41.46 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.560 in39.62 mm |
Internal ID
N/A
28722 |
41.46 |
| SUM1.5-30 | $0.00 | CAD N/A | Module N/A 1.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.855 in47.12 mm |
Internal ID
N/A
28723 |
0 |
| SUM2-20 | $47.50 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm |
Internal ID
N/A
28724 |
47.5 |
| SUM2-25 | $60.97 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm |
Internal ID
N/A
28725 |
60.97 |
| SUM2-30 | $0.00 | CAD N/A | Module N/A 2 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.474 in62.83 mm |
Internal ID
N/A
28726 |
0 |
| SUM2.5-20 | $70.16 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm |
Internal ID
N/A
28727 |
70.16 |
| SUM2.5-25 | $91.99 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.04 mm |
Internal ID
N/A
28728 |
91.99 |
| SUM2.5-30 | $0.00 | CAD N/A | Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.092 in78.54 mm |
Internal ID
N/A
28729 |
0 |
| SUM3-20 | $98.78 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm |
Internal ID
N/A
28730 |
98.78 |
| SUM3-25 | $129.02 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm |
Internal ID
N/A
28731 |
129.02 |
| SUM3-30 | $0.00 | CAD N/A | Module N/A 3 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.710 in94.24 mm |
Internal ID
N/A
28732 |
0 |
| SUM4-20 | $172.30 |
CAD
N/A
|
Module N/A 4 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.372 in85.65 mm |
Internal ID
N/A
28733 |
172.3 |
| SUM4-25 | $232.24 |
CAD
N/A
|
Module N/A 4 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 1.102 in28 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.160 in105.66 mm |
Internal ID
N/A
28734 |
232.24 |
